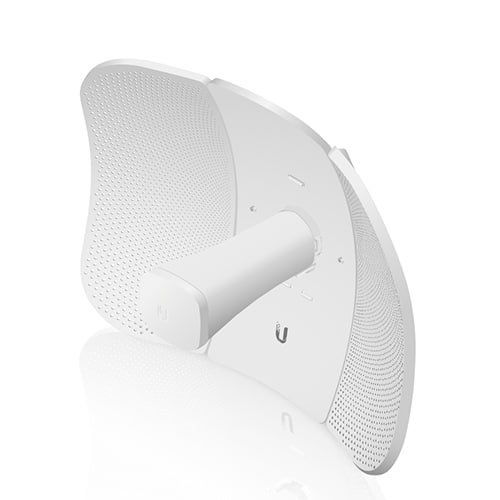

LiteBeam AC Gen2 airMAX ac CPE

The LiteBeam AC Gen2 Airmax ac CPE with Dedicated Management Radio from Ubiquiti Networks offers a reliable 5 GHz long-distance point-to-point connection.

 LiteBeam AC Gen2 Specifications;

• • Dimensions: 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17″)
•  Weight-Without Mount: 1.360 kg (2.998 lb)With- Mount: 1.735 kg (3.825 lb)
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included
• Max. Power Consumption: 7W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Supported Voltage Range: 24V ± 10%
• Gain 26 dBi
•  Networking Interface (1) 10/100/1000 Ethernet Port
• Processor Specs MIPS 74Kc
• Memory 64 MB DDR2
• LEDs Power, Ethernet
• Channel Sizes&nbps; &nbps; PtP Mode: 10/20/30/40/50/60/80 MHz &—nbps; &nbps; PtMP Mode: 10/20/30/40 MHz
• Enclosure Characteristics Reflector (Aluminum) / Plastic: PC
• Mounting Pole-Mounting Kit (Included)
• Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
• Wind Survivability 200 km/h (125 mph)
• ESD/EMP Protection ± 24 kV Contact / Air
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Non-condensing
• Certifications CE, FCC, IC

This Lite Beam radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals.

Setup is simple thanks to fully adjustable hardware allowing for adjustments to be made along both axes as well as a built-in bubble level to ensure the radio is mounted properly. The 5AC Gen2 features a robust mount with separate azimuth and elevation adjustments.
