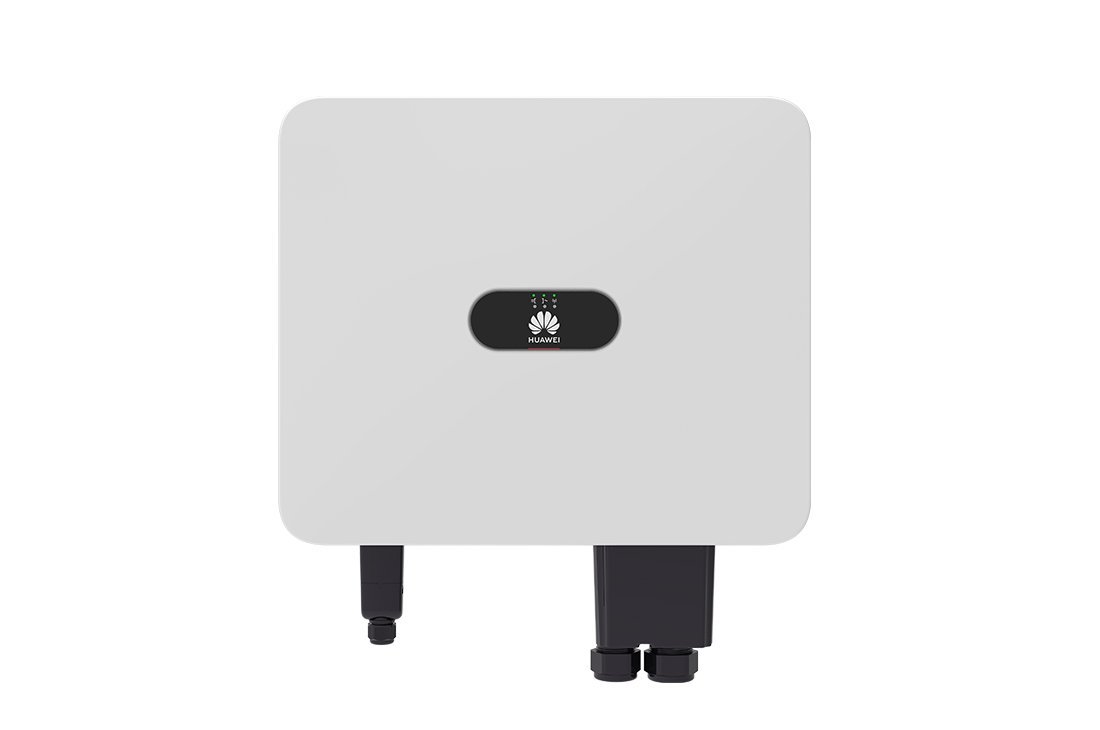

Huawei Sun2000 15ktl m5 inverter

The HUAWEI SUN2000-15KTL-M5 inverter converts the direct current of the solar modules into standard household alternating current. This makes it an indispensable component – with its high efficiency, it ensures optimal efficiency of the entire system. The dimensions of the HUAWEI SUN2000-15KTL-M5 inverter are 546 x 460 x 228 mm, which makes the device convincing with its compact design. The weight of 21 kg is also pleasantly low for a component of this type – installation can be carried out by two people or even alone. Integration is effortless with the plug-in connections. For data exchange with the Smart Power Meter, the component has RS485 communication. Commissioning is greatly simplified by the Huawei FusionSolar app, so that it is successfully completed in just a few minutes.

Advantages of the HUAWEI SUN2000-15KTL-M5 inverter

The inverter equipped with overvoltage protection (type 2 for AC and DC), as well as two independent MPP trackers.

The HUAWEI SUN2000-15KTL-M5 inverter has a rated power of 16,500 VA, and the voltage range extends from 200 to 1,000 volts.

The maximum efficiency of 98.4% is very high, which allows the entire system to operate extremely efficiently. The European efficiency is specified at 98.0 %.

 HUAWEI SUN2000 -15KTL-M5 – Specifications

Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 – 4,000 m (derating > 2.000 m)
Cooling: Smart Air Cooling
Display: LED indicators; integrated WLAN + FusionSolar App
Communication: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional), 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket): 21 Kg
Dimensions (incl. mounting bracket): 546 x 460 x 228 mm
Protection class: IP66
PID consumption: 5W

HUAWEI SUN2000 -15KTL-M5 – Input DC

Recommended maximum PV power1: 22,500 Wp
Max. Input voltage2: 1,100 V
Operating voltage ^range3: 200 V ~ 1000 V
Starting voltage: 200 V
Rated input voltage: 600 V
Max. Input current per MPPT: 30 A (two string) / 20 A (single string)
Max. Short circuit current: 40 A
Number of MPP trackers: 2
Max. Number of inputs per MPPT: 4

HUAWEI SUN2000 -15KTL-M5 – Output AC

Mains connection: three-phase
Rated power: 15,000 W
Maximum apparent power: 16,500 VA
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 239.6 Vac / 415Vac, 3W + N + PE
AC – Line frequency: 50 Hz / 60 Hz
Maximum output current: 25.2A/380Vac, 23.9A/400Vac, 23.1A/415Vac
Adjustable power factor: 0.8 kap. … 0.8 ind.
Total harmonic distortion (THD): ≤ 3%.

HUAWEI SUN2000 -15KTL-M5 – Efficiency

Max. Efficiency: 98.4 %
European efficiency: 98.0 %

HUAWEI SUN2000 -15KTL-M5 – Protection devices

DC load break switch: Yes
Islanding detection: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
DC reverse polarity protection: Yes
AC overvoltage protection: CLASS II
DC overvoltage protection: TYPE II
Fault current monitoring: Yes
Arc detection: Yes
Inputs ripple control receiver: Yes
Integrated PID ^recovery4: Yes

HUAWEI SUN2000 -15KTL-M5 – Module Optimizer

SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P, SUN2000-1300W-P, SUN2000-1100W-P

HUAWEI SUN2000 -15KTL-M5 – Standards and Safety

EN/IEC 62109-1, EN/IEC 62109-2

HUAWEI SUN2000 -15KTL-M5 – Power supply conditions

G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, ABNT, VFR 2019, UNE 217001, UNE 217002,
RD 244, TOR D4, IEC61727, IEC62116

Further information on conformity to standards is available on request.

HUAWEI SUN2000 -15KTL-M5 – included in delivery

PV Connector
AC Connector
Signal Cable Connector
Bracket
