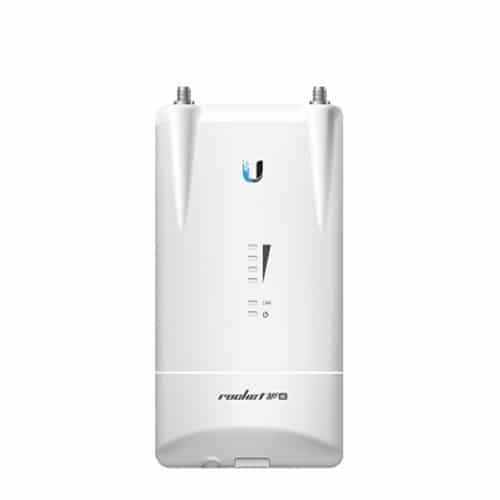

Ubiquiti Rocket 5AC-Lite 5GHz R5AC-Lite Access Point

Ubiquiti Rocket 5AC-Lite (R5AC-Lite) is a high-performance, outdoor access point designed for long-range wireless bridging and base station applications. It operates on the 5 GHz frequency band and supports Ubiquiti’s advanced airMAX ac protocol, delivering superior throughput and enhanced network scalability for point-to-point (PtP) and point-to-multipoint (PtMP) deployments.

Whether you’re building a backhaul link or expanding a wide-area wireless network, the Rocket 5AC-Lite offers reliable and robust performance with plug-and-play integration into the airMAX ecosystem.

Key Features

• High-Speed Wireless Performance
  Delivers up to 450+ Mbps real TCP/IP throughput using advanced airMAX ac technology with 256QAM modulation, tripling the throughput of standard airMAX products.
• Flexible Wireless Modes
  Supports both Access Point and Station modes, ideal for PtP and PtMP configurations with multiple selectable channel widths for tailored performance.
• Custom airMAX Engine
  Ubiquiti’s airMAX engine includes a custom IC for enhanced TDMA latency, boosting performance and supporting high data rates and improved network efficiency.
• Intelligent QoS
  Prioritizes voice and video traffic to ensure smooth streaming and low-latency connections.
• Scalable Design
  Ideal for carrier-class links and expanding wireless coverage in large-scale deployments.
• Plug-and-Play Mounting
  Easily attaches to any airMAX antenna – no tools required – making installation simple and fast.
• Gigabit Ethernet Support
  Ensures maximum wired data throughput between devices and the access point.
• Passive PoE Support
  Powers the device using 24V Passive PoE, enabling single-cable installations for both data and power.

Technical Specifications

• Model: Rocket 5AC-Lite (R5AC-Lite)
• Frequency Band: 5 GHz
• Max Radio Throughput: 450+ Mbps TCP/IP
• Modulation Type: 256QAM (airMAX ac)
• Channel Widths Supported:
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
• Ethernet Interface: 1 x Gigabit RJ45 Port
• Power Method: 24V Passive PoE
• Mounting: Built-in Rocket mount compatible with all airMAX antennas
• Antenna Compatibility: Works with all airMAX ac antennas (sold separately)
• Power Consumption: Low (varies based on usage)
• Management Interface: Web UI, mobile app
• Security: WPA2, auto/manual TX power control
• Use Case: Outdoor wireless bridge or base station

Ideal For:

• Long-range wireless backhaul links
• Rural broadband extension
• Outdoor Wi-Fi networks
• ISP base stations
• Enterprise or campus networking
