Ubiquiti Networks 48V PoE Adapter with Gigabit LAN Port

Ubiquiti Networks 48V PoE Adapter with Gigabit LAN Port - Image 2

Ubiquiti Networks 48V PoE Adapter with Gigabit LAN Port

KSh 4,200.00 Ex.VAT

Ubiquiti Gigabit 48V PoE 0.5A Adapter

Order via whatsapp(Faster)

Categories: Networking Equipment, POE Injectors & Adapters

Ubiquiti Networks 48V PoE Adapter with Gigabit LAN Port

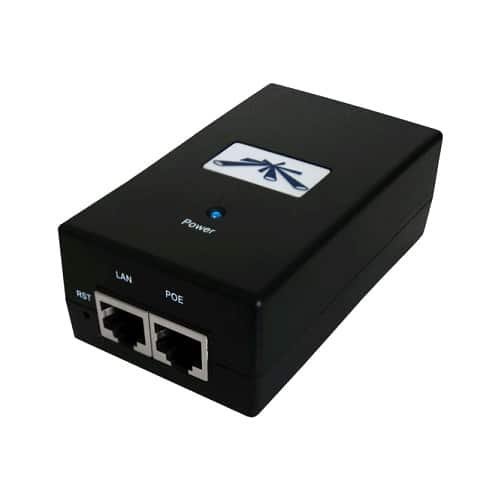

The Ubiquiti PoE-48 is a Power over Ethernet Adapter for use with your Ubiquiti Wireless Networking devices.

Ubiquiti POE-48 Key Features

LAN Activity Indicator: Detects if LAN is connected to device
Remote Reset Capability: Supports Airmax Bullet, Rocket, Nano, Pico

Ubiquiti POE-48 Technical Specifications

Power

Output Voltage: 48VDC at 1.0A
Input Voltage: 90-260VAC at 47-63Hz
Input Current: 0.3A at 120VAC, 0.2A at 230VAC
Inrush Current: <15A peak at 120VAC, <30A peak
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frequency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
Surge Protection: Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1200A (8/20uS) Power
Peak Pulse Current: 36A (10/1000uS Data)
Shunt Capacitance: <5pF data
Response Time: <1nS

Interface

AC Connector: IEC-320 C6
Data In/POE RJ45 Shielded Socket
80% Current Indicator: Power LED will change color

Physical

Operating Temperature: -10C to +60 C
Storage Temperature: -20 to +85 C
Operating Humidity: -10C to +60 C
Size: (LXWXH) 85 x 55 x 33 (mm)
Weight 4 oz

Certification

Compliance UL, EN55022 (CISPR22) class B, Meets CE

Also check;

Ubiquiti EdgeRouter PoE 5-port
