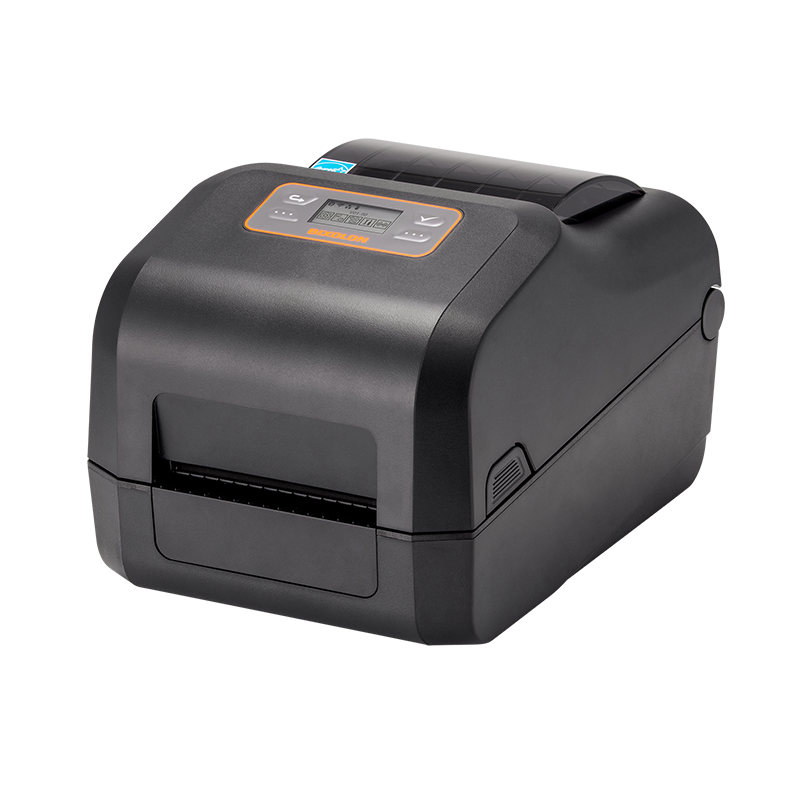

Bixolon XD5-40d Direct Thermal Desktop Label Printer

Bixolon XD5-40D is a powerful 4-inch desktop label printer designed for high-performance, high-volume labeling in manufacturing, logistics, retail, and healthcare. Offering both Direct Thermal and Thermal Transfer printing, it delivers flexibility, durability, and outstanding print quality up to 7 inches per second.

With 203 dpi resolution and print speeds of up to 178 mm/sec (7 inches per second), the XD5-40D ensures high-quality output at industrial speeds. It supports a wide range of label widths (15–118 mm) and is compatible with multiple ribbon types (wax, wax/resin, resin), making it adaptable to short-term and long-term label applications.

Standard connectivity includes USB + USB Host, with optional add-ons such as Ethernet, Serial, Wi-Fi (Dual-band), and Bluetooth, making it a great choice for networked or mobile printing environments. For enhanced usability, an optional LCD display is available for real-time status updates.

Key Features

• Dual Print Method: Supports both Direct Thermal (no ribbon required) and Thermal Transfer (longer-lasting labels)
• High-Speed Performance: Prints at up to 7 inches/sec (178 mm/sec) for rapid label generation
• Sharp Print Quality: 203 dpi for barcodes, images, and small text
• Versatile Media Support: Handles paper, synthetic, and thermal transfer media up to 118 mm wide
• Flexible Ribbon Compatibility: Works with wax, wax/resin, and resin ribbons for different durability levels
• Wide Connectivity Options:
  • Standard: USB 2.0, USB Host
  • Optional: Serial, Ethernet, WLAN (2.4G/5G), Bluetooth V4.2
• Expandable Memory: Standard 64 MB SDRAM & 128 MB Flash; optional upgrade to 256 MB
• Optional Display: FSTN LCD (200 x 100 px) for enhanced user interface
• Tool-less Maintenance: Simplifies ribbon and media changes, saving time
• Compact Design: Small footprint fits neatly into industrial and office environments

Technical Specifications

• Brand: Bixolon
• Model: XD5-40D
• Print Method: Direct Thermal & Thermal Transfer
• Print Speed: Up to 178 mm/sec (7 ips)
• Resolution: 203 dpi
• Print Length: Up to 1,000 mm
• Media Width: 15 mm – 118 mm
• Media Thickness: 0.06 mm – 0.20 mm
• Roll Diameter: Up to 127 mm
• Ribbon Length: Up to 300 m
• Ribbon Types: Wax, Wax/Resin, Resin (outside wound)
• Standard Memory: 64 MB SDRAM, 128 MB Flash
• Optional Memory: 256 MB SDRAM, 256 MB Flash
• Interfaces:
  • Standard: USB + USB Host
  • Optional: Ethernet, Serial, WLAN (802.11 a/b/g/n), Bluetooth V4.2 MFi
• Supported Languages: SLCS™, BPL-Z™, BPL-E™, Unicode (UTF-8/UTF-16LE/BE)
• Display: Optional FSTN LCD (200 x 100 pixels)
• Weight: 1.89 kg
• Power Supply: AC adapter (100–240V)
• Operating Temp: 5°C to 40°C

Applications

• Manufacturing: Barcode printing, inventory tags, product labeling
• Logistics & Warehousing: Shipping labels, parcel tracking, logistics management
• Retail: Price tags, barcode labels, shelf labels
• Healthcare: Patient ID tags, specimen labels, medical records

Get the Bixolon XD5-40D Label Printer at TDK Solutions – Your trusted Bixolon Shop in Kenya! Enjoy high-speed, dual-mode printing with USB, Ethernet, Wi-Fi, and Bluetooth options. Perfect for high-volume label applications in retail, logistics, healthcare, and more. Order now for the best deals in Kenya!
