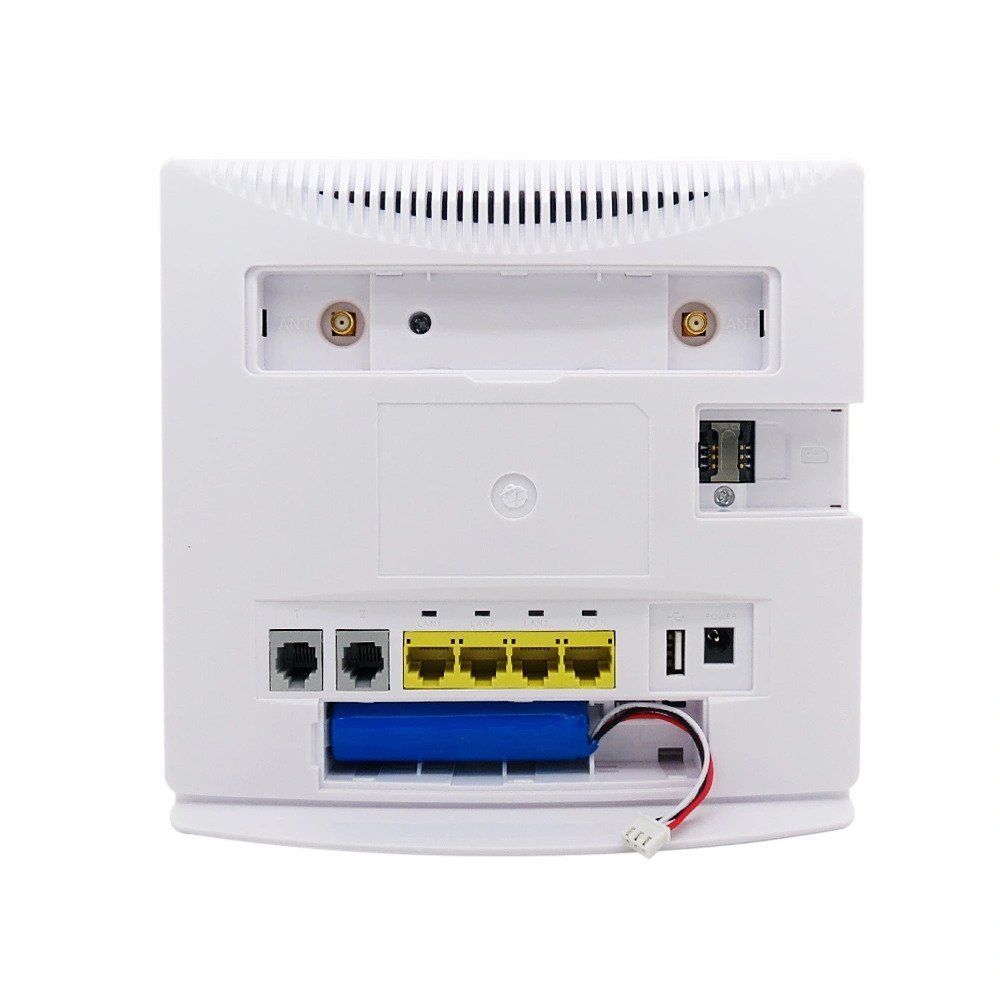

4G Lte CPE GSM WiFi Router 300Mbps LAN Port


2g/3G/4G Lte CPE Broadband Unlock FDD Tdd WCDMA GSM Mobile Hotspot Wireless WiFi Router with Cat4 300Mbps LAN Port

2g/3G/4G Lte CPE Broadband Unlock FDD Tdd WCDMA GSM Mobile Hotspot Wireless WiFi Router with Cat4 300Mbps LAN Port

4G-Lte-CPE-Broadband-Unlock-FDD-Tdd-WCDMA-GSM-Mobile-Hotspot-Wireless-WiFi-Router-with-Cat4-30 (1)

Main Function of the router

Wireless Wi-Fi Router that supports up to 32 Users

GSM GATEWAY for Use with PBX

• Support 4G network connection
• Support external antennas
• WLAN function, easy to expand wireless network
• Prevent loiter network, multi wireless safety ensuring
• IP broadband band control, ensure the speed
• Support network traffic statistics
• Functioning as a Dynamic Host Configuration Protocol (DHCP) server and supporting

• Network Address Translation (NAT)
• Internet Protocol version 6 (IPv6)/Internet Protocol version 4 (IPv4) dual stack
• Security functions
• Wi-Fi protected setup (WPS)
• Support TR069
• Support L2TP VPN
• Supports NAT and Network Address and Port Translation (NAPT)
• Support Read, write, send SMS


SHFi4G8X8 Technical specifications
4G Platform Qualcomm MDM9225
LTE Option 1: FDD:B1/B2/B3 or B4/B5/B7/B8/B28
TDD:B38/B39/B40/B41(can be customized)
Option 2: FDD:B1/B2/B3 or B4/B5/B7/B8/B17/B20
TDD:B38/40(can be customized)
Please confrim your frequencies, frequencies can be customized
3G/2G WCDMA:B1/B2/B5/B8
GSM: B2/B3/B5/B8
Rate level CAT4  DL:150Mbps / UL:50Mbps
Transmitting power 23dBm
Antenna External antenna and internal antenna,Gain>3db
WiFi Band 2.4GHz,802.11b/g/n
WiFi Rate Highest rate 300Mbps
WiFi Standard IEEE 802.11b/g/n
WiFi RF Characteristics Highest transmit power 22dBm,sensitivity is better than -77dBm
Number of linking users Maximum 32  user connected
CSFB support
Network Features
Networking protocols PPTP,L2TP,PPPoE,DHCP,Client/Server,NAPT,NTP
High-speed router Built-in DHCP Server,DNS Clinet,support NAT
Dialing function Manual dialing,autodialing,PPPOE dialing
SIM card Features Support 1.8V/3V powered SIM/USIM card,Support encryption card,Support
Web smart support
Centralized network management support
TR069 support
Remote Upgrade support
Security Features Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address binding
Speed control Support UL and DL speed limit , port speed limit
LAN/WAN RJ-45×4 (10/100/1000Mbps ethernet port)
FXS RJ-11×2  by paralleling(optional)
PSU DC2.0  15V @ 500mA
Power 3.0W
Light power,network,signal,LAN
Physical Characteristics
Working temperature -20~50ºC
Stock  temperature -40~85ºC
Huminity ≤95%
